Computer Numerical Control (CNC) is one of the most significant technological advancements in the manufacturing world. By automating machine tools with computer systems, CNC technology has drastically transformed industries, offering higher precision, increased production speed, and greater flexibility. This guide will delve deep into what CNC is, its origins, how it works, its components, and its extensive applications across multiple industries. Additionally, we’ll explore its benefits, challenges, and the future of CNC technology.
What is CNC (Computer Numerical Control)?
Computer Numerical Control (CNC) is a manufacturing process that utilizes a computer to control the movement of tools and machinery. CNC systems read detailed instructions stored in a program and translate these into physical operations to shape materials. Unlike manual machining, which requires human input for every movement, CNC automates these processes, improving consistency and precision.
The core of CNC is its ability to use numerical inputs (such as coordinates, speeds, and tool settings) to control machines. This enables machines to perform repetitive tasks with high accuracy, minimizing human error and optimizing efficiency. CNC can be applied to a wide variety of processes, including machining, welding, grinding, laser cutting, and even 3D printing.
The Evolution of CNC: From Manual to Automated Manufacturing
CNC technology traces its roots back to the development of Numerical Control (NC) systems in the 1940s. These early systems were based on punched tape, which carried the machine’s instructions. While this was an innovative step in automating mechanical processes, it was limited in flexibility. As computer technology advanced, so did the ability to automate and program more complex tasks.
In the 1960s, CNC machines evolved from NC systems with the integration of digital computers. This development allowed for real-time adjustments and greater precision, marking the beginning of CNC’s widespread use in industries such as aerospace, automotive, and defense.
Key Components of CNC Systems
A CNC system is composed of several key components, each playing a crucial role in ensuring the machine functions efficiently:
| Component | Description |
|---|---|
| CNC Controller | The central unit that interprets the CAD/CAM program and controls the machine’s operations. |
| CNC Software | CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) programs that generate the instructions for the machine. |
| Machine Tools | Physical tools (e.g., drills, mills, lathes) that are controlled by the CNC system. |
| Input/Output Devices | Devices like keyboards, monitors, and sensors that enable interaction with the machine and display operational data. |
| Communication Protocols | Mechanisms such as USB, Ethernet, or wireless systems used to transfer data between the machine and the central control system. |
How CNC Works: The Workflow from Design to Production
CNC technology operates through a series of steps that ensure high precision in manufacturing:
- Design Creation (CAD): The first step in the CNC process is creating a detailed design of the part to be manufactured using CAD software. This design is typically made in 2D or 3D format and includes all necessary specifications like dimensions, angles, and tolerances.
- Program Generation (CAM): The CAD design is then imported into CAM software, which translates the design into machine-readable code (G-code and M-code). This code tells the machine the exact movements it needs to make, from the speed of the tool to the specific paths it should follow.
- Machine Execution: Once the program is created, it is fed into the CNC machine. The machine then follows the commands, automatically adjusting its movements to perform the necessary tasks, whether it’s cutting, drilling, or shaping.
- Monitoring and Adjustment: CNC machines often come equipped with sensors and feedback systems to monitor the manufacturing process in real time. This allows operators to make any necessary adjustments and ensures that the machine operates within the set parameters.
Types of CNC Machines and Movements
CNC machines can be categorized based on their functionality and the type of movements they use:
- CNC Milling: A rotary tool removes material from the workpiece. CNC mills can work in multiple axes (2, 3, 4, or more), which allows them to create intricate and complex geometries.
- CNC Turning: The workpiece rotates while a stationary tool removes material. CNC turning is ideal for cylindrical parts such as shafts or tubes.

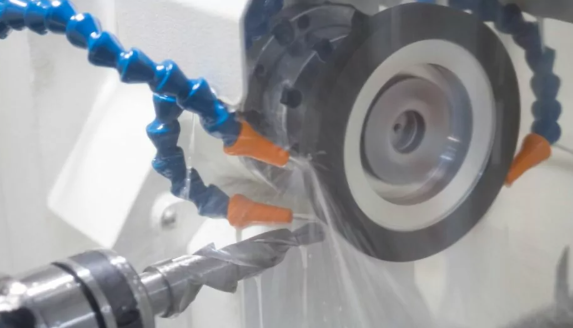

- CNC Grinding: Grinding machines use rotating abrasive wheels to refine a workpiece, achieving high-precision finishes.
- CNC Laser Cutting: High-powered lasers are used to cut materials with precision. CNC laser cutters can handle metals, plastics, and even fabrics with extreme accuracy.
- CNC Plasma Cutting: This process uses ionized gases to cut metals like steel, aluminum, and copper. It’s ideal for large-scale projects that require fast, precise cuts.
- CNC Waterjet Cutting: High-pressure water, often mixed with abrasive substances, is used to cut materials without generating heat, which makes it ideal for cutting delicate or heat-sensitive materials.
- CNC 3D Printing: A modern application of CNC technology, where material is deposited layer by layer to create three-dimensional parts, offering significant flexibility in prototyping and low-volume production.
CNC Programming: G-Codes and M-Codes
CNC machines use two primary coding systems: G-codes and M-codes.
- G-Codes (Geometric codes) are used to control the machine’s movement. For example:
- G00: Rapid positioning
- G01: Linear interpolation (straight-line motion)
- G02: Clockwise circular interpolation
- G03: Counterclockwise circular interpolation
- M-Codes (Miscellaneous codes) control other machine functions, such as tool changes or coolant activation. For example:
- M00: Program stop
- M08: Turn on coolant
- M09: Turn off coolant
Advantages of CNC Technology
CNC technology offers several significant benefits that make it indispensable in modern manufacturing:
- Precision and Accuracy: CNC machines can produce parts with micron-level precision, ensuring high-quality output consistently.
- Increased Speed and Efficiency: CNC machines can operate continuously, 24/7, without the need for breaks. They also minimize downtime between operations, increasing overall productivity.
- Flexibility: CNC systems can be easily reprogrammed to accommodate different designs, allowing for quick changes in production runs.
- Reduced Labor Costs: CNC systems reduce the need for manual labor, particularly for repetitive tasks, leading to significant cost savings.
- Complex Geometry: CNC technology can produce intricate, complex geometries that would be difficult or impossible to achieve with manual tools.
Industries Using CNC Technology
CNC technology is employed across a wide range of industries, including:
- Automotive: CNC is used for precision manufacturing of engine components, body parts, and assembly tools.
- Aerospace: The aerospace industry relies on CNC for producing highly complex, high-performance components such as turbine blades and structural parts.
- Medical: CNC machines are used to manufacture implants, surgical tools, and prosthetics with high precision.
- Electronics: CNC machines are essential for producing components like circuit boards, connectors, and enclosures.
- Furniture: CNC routers are commonly used for cutting intricate wood designs in the furniture industry.
Challenges and Limitations of CNC Technology
Despite its many advantages, CNC technology has some drawbacks:
- High Initial Cost: The upfront cost of CNC machines can be prohibitive, especially for small businesses.
- Complex Setup and Programming: CNC programming requires specialized knowledge. Improper programming can lead to machine breakdowns or production errors.
- Job Displacement: The automation of manufacturing through CNC machines reduces the need for low-skilled labor, leading to job displacement in certain sectors.
The Future of CNC: Advancements and Trends
CNC technology is continuously evolving. Some of the exciting developments include:
- Integration with AI and IoT: CNC machines are becoming more intelligent, collecting data and making real-time adjustments. This integration with the Internet of Things (IoT) allows for remote monitoring and predictive maintenance.
- Nanotechnology: CNC machines are now capable of working at the nanometric scale, essential for industries like semiconductor manufacturing.
- Automation and “Done-in-One” Machines: Future CNC systems aim to further reduce manual intervention by combining multiple manufacturing processes (e.g., milling, turning, and drilling) into a single machine.
Conclusion
CNC technology has fundamentally reshaped modern manufacturing, offering unprecedented precision, speed, and flexibility. From automotive and aerospace to healthcare and electronics, CNC machines have become a critical component in producing high-quality products efficiently. As technology continues to evolve, CNC will play an increasingly vital role in shaping the future of manufacturing, especially as industries embrace automation and artificial intelligence.
